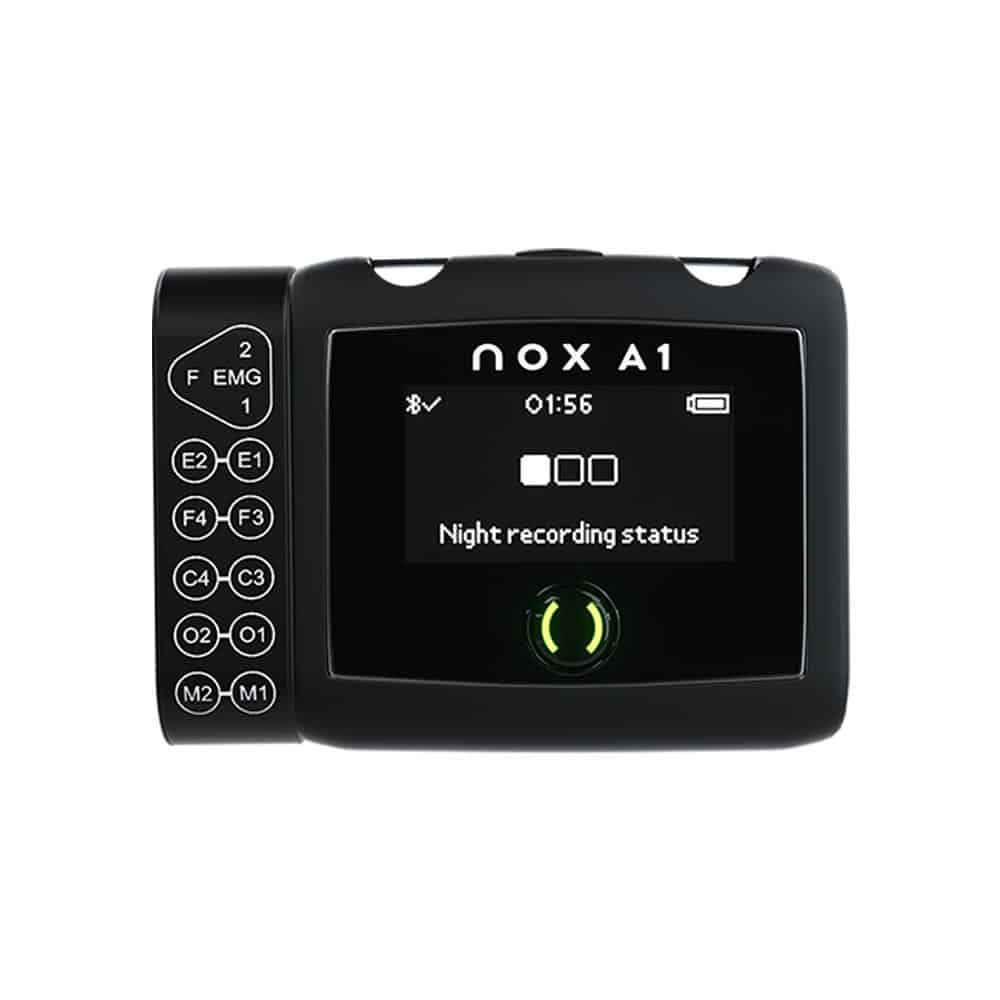

The Nox A1s PSG is a portable multisomatograph from Nox Medical. It is considered one of the leading sleep study recorders available and fully conforms to the AASM (American Academy of Sleep Medicine) specifications. It is suitable for hospital and home use. It comes with the Noxturnal operating program which is a multifunctional platform and unleashes the full potential of the Nox A1s PSG. Offering automatic analysis and processing of the recording. Combined with our Nox C1 it offers real-time recording with the possibility of monitoring by a computer.
Product Features:
- With the Nox A1s PSG , the clinician has all the necessary channels that meet the AASM criteria for PSG intra-orgasmic studies.
- Built-in sensors for snoring, ECG, EMG & EEG.
- The improved Nox RIP technology with a sampling frequency of 200 Hz can be used as the main flow measurement.
- The improved Bluetooth platform, BLE 5.0, facilitates lower power consumption and extends battery life for multiple night studies.
- Cutting-edge analysis in Noxturnal software enhanced by artificial intelligence.
- Nox A1s PSG diagnostic system designed for adult and pediatric patients. Nox A1s PSG is intended for paediatric use in children over 2 years of age.
- Can be used for sleep studies at home or in the laboratory.
- Small and lightweight PSG recorder designed with patient comfort in mind.
- Nox A1s may be used for patients over two years of age.
What is Included:
- Nox A1s recorder
- Oximeter Nonin 3150
- Nox abdominal cable
- Nox RIP Disposable belts, Medium – 2 sets
- Nox Cannula with filter – 2 pieces
- Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
- EEG Nox A1 head cable 90 cm (35 in), Adults
- Electrode cable Nox A1 EEG 5 Lead Gold – 2 pieces
- Nox Snap-on Double Lead Orange 50/100 cm (20/40 in)
- Nox Snap-on Double Lead Grey 148/150 cm (58/60 in)
- Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
- USB-C cable
- Nox carrying case
- Nox key Battery cap
- Noxturnal CD
- 2 AA batteries
- 2 AAA batteries
Technical Specifications
Signal specifications | |
Available signals: | RIP Chest and abdomen, Nasal pressure/mask pressure, Snoring signal, Sound and snoring channel, 13 unipolar channels, 2 bipolar channels, Position, Activity, Sp02, pulse, plethysmography and more. |
Monopolar channels: | 13x Unipolar channels – Touch socket DIN 42-802, input range ±3.2 mV < Noise 1 μVrms, sampling rate 512 kHz |
Bipolar channels: | 4x Bipolar channels, input range ±1024 mV, noise < 3 μVrms, Sampling rate 512 kHz, ADC 24-bit |
Flow/pressure signals: | 2x RIP Channels Chest and abdomen respiratory induction plethysmography, Sampling 200 Hz, 1x Flow/pressure channel -5cmH20 to +50cmH2O input pressure range, DC-80 Hz, noise <1 mmH2O |
Activity/body position signals | |
Audio signals: | Sampling 1MHz, internal bandwidth 8 kHz |
Wireless connectivity: | Bluetooth V5.0 BLE |
Ambient light: | 1 Hz |
Performance specifications | |
Memory capacity: | 4 GB |
Recording time: | 20-30 hours with a new lithium battery |
Computer communication: | USB 2.0 |
Physical specifications | |
Energy source: | One 1.5VAA battery during recording. USB PC socket when downloading data |
Battery type: | Nickel-metal (NiMH), lithium and alkaline |
Battery cover: | Waterproof and locked |
Device dimension: | 82 mm x 62 mm x 26 mm |
Weight: | 92 gm (120 gm with batteries) |
Screen: | OLED dimensions 19 x 35 mm |
USB connection: | Type C |
