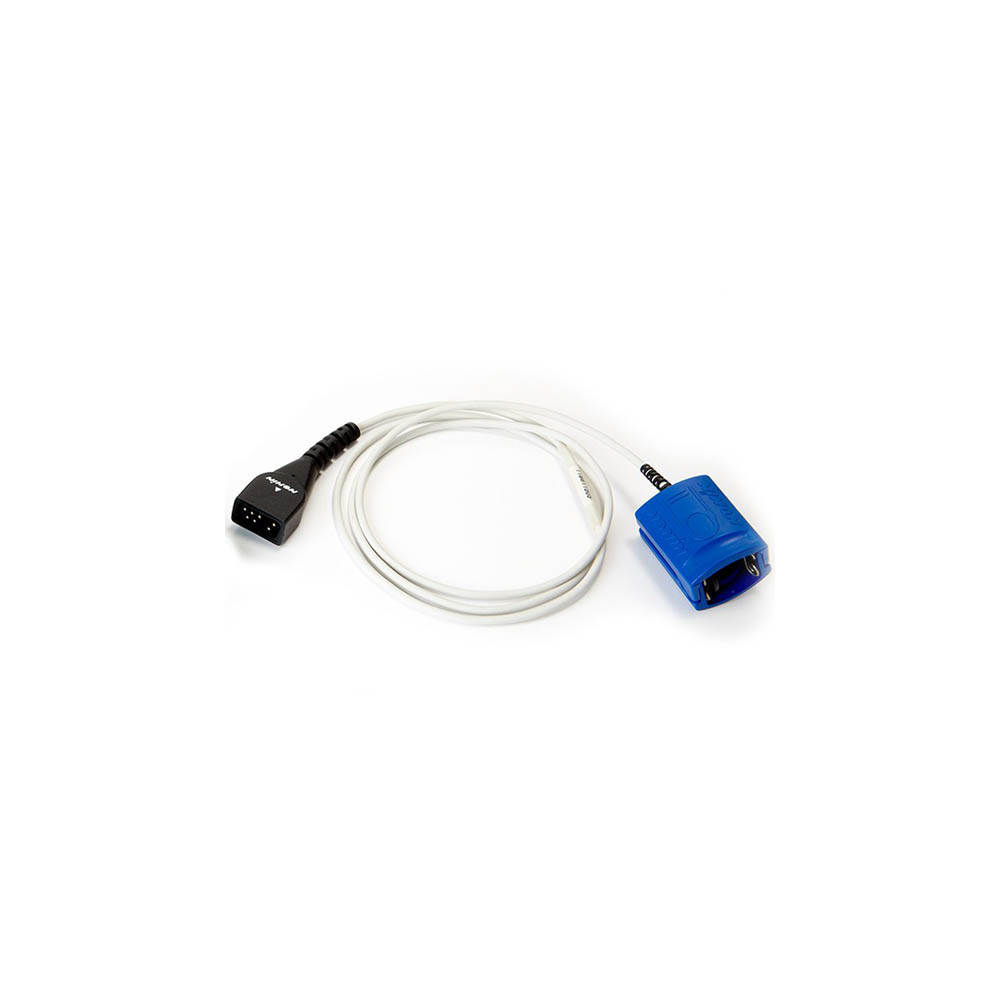

The Nonin Model 8000AA adult fingertip sensor is designed for on-site measurement or continuous recording of hemoglobin saturation (SpO2) and heart rate (PR) for patients weighing more than 30 kg.
Technical Specifications | |
Length: | 1m, 2m and 3m |
Patient characteristics: | > 30 kg |

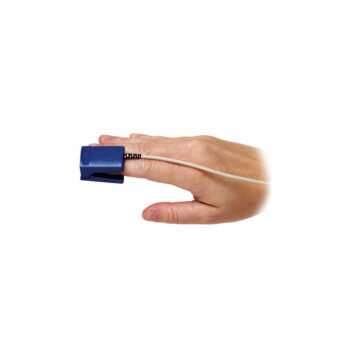

Suggested application: | hand finger |
Precision low perfusion SpO2 : | 70% to 100% ±2 digits (Arms*) |
Pulse rate accuracy: | 18 to 300 BPM ±3 digits (Arms*) |
Low pulse rate perfusion accuracy: | 40 to 240 BPM ±3 digits (Arms*)1 |
Temperature | |
Function: | -20 °C to 50 °C |
Custody/transportation: | -40 °C to 70 °C |
Humidity | |
Function: | 10% to 95% without condensation |
Custody/transportation: | 10% to 95% without condensation |
* ±1 Arms includes 68% of the population |
Compatible with:
- Nonin PalmSAT 2500.
- Nonin PalmSAT 2500A.
- Nonin 8500.
- Nonin 7500.
- Nonin Avant 9700.
