The Model 8008J Reusable Infant Sensor is designed for long-term monitoring of hemoglobin saturation (SpO2) and heart rate (PR) for patients weighing from 2 to 20 kg. The Model 8008J sensor is attached to the infant’s toe with a special FlexiWrap adhesive tape for correct and stable positioning. The package includes 25 pieces of adhesive FlexiWrap tapes.

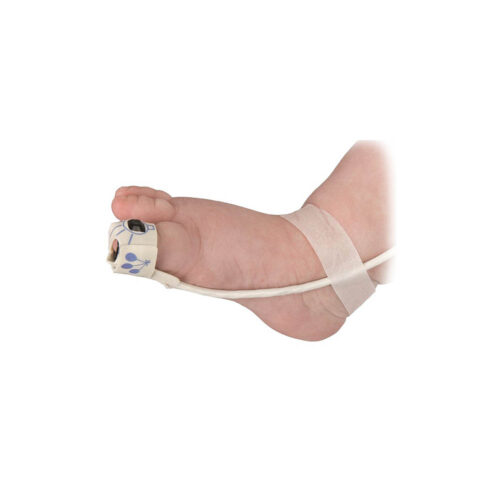

Technical Specifications | |
Length: | 1m, |
Patient characteristics: | 2 to 20 kg |
Suggested application: | Leg |
Precision low perfusion SpO2 : | 70% to 100% ±2 digits (Arms*) |
Pulse rate accuracy: | 40 to 240 BPM ±3 digits (Arms*) |
Low pulse rate perfusion accuracy: | 40 to 240 BPM ±3 digits (Arms*)1 |
Temperature | |
Function: | -20 °C to 50 °C |
Custody/transportation: | -40 °C to 70 °C |
Humidity | |
Function: | 10% to 95% without condensation |
Custody/transportation: | 10% to 95% without condensation |
* ±1 Arms includes 68% of the population |
Compatible with:
- Nonin PalmSAT 2500.
- Nonin PalmSAT 2500A.
- Nonin 8500.
- Nonin 7500.
- Nonin Avant 9700.
